ERGELIT-KS2

ERGELIT-KS2

Coating mortar
Art. No.: HTD-20001

All-rounder WW mortar for industrial waste water: masonry mortar, joint mortar, coating mortar, laying mortar and as repair mortar

Further properties

Mit seinen herausragenden Eigenschaften und zusätzlichen Vorteilen ist ERGELIT-KS2 die ideale Wahl für Ihre Bauvorhaben. Hier sind einige der besonderen Merkmale, die KS2 auszeichnen:

Specially developed for industrial wastewater: When it comes to coating municipal and industrial wastewater structures, ERGELIT-KS2 is unbeatable. It has been specially developed to meet the demanding requirements of these environments. With ERGELIT-KS2 you get a reliable and durable solution for waterproofing this type of aggressive wastewater.

Tested quality and approvals: ERGELIT-KS2 has been tested in accordance with DIN19573 XWW4-B2. This certification confirms the high quality and performance of the material. You can rest assured that ERGELIT-KS2 meets the strict requirements and offers you reliable protection.

Versatile application options: ERGELIT-KS2 offers you a wide range of application options. Whether you need masonry mortar, joint mortar, coating mortar, laying mortar or repair mortar, ERGELIT-KS2 is the perfect choice.

Schnelle Wasserbelastbarkeit: Mit KS2 sparen Sie Zeit und gewährleisten gleichzeitig eine schnelle Wasserbelastbarkeit. Bereits nach kurzen 2 Stunden ist ERGELIT-KS2 wasserbelastbar, bei einer Temperatur von 20°C. Diese schnelle Aushärtungszeit ermöglicht es Ihnen, den Bauprozess zu beschleunigen und Zeit zu sparen.

Hervorragende Schichtdicken: KS2 kann in sehr hohen Schichtdicken von bis zu 3 cm in einem einzigen Kellenzug aufgetragen werden. Diese außergewöhnliche Eigenschaft ermöglicht es Ihnen, auch anspruchsvolle Projekte effizient zu bewältigen und ein hohes Maß an Flexibilität zu erreichen.

  • Grain size 1 mm
  • Consistency: plastic to stiff-plastic
  • Thixotrope
  • Rebound approx. 3 % under good spraying conditions in the wet spraying process
  • Highly alkaline
  • Very good adhesive tensile strength (≥ 2 N/mm², depending on the substrate)
  • High adhesive strength = very high layer thicknesses possible
  • High abrasion resistance
  • Sulphate-resistant
  • Impermeable to water
  • Frost and de-icing salt resistant
  • Waste water temperature: short-term peaks up to 100° C, long-term up to 90°
  • Shrink and shrinkage-free in the pipe
  • Corrosion protection against industrial wastewater between pH 3 - 11

Special features

  • Is perfectly suited for wastewater structures with industrial wastewater (highly acid-resistant)
  • Is tested according to DIN19573 XWW4 -B2

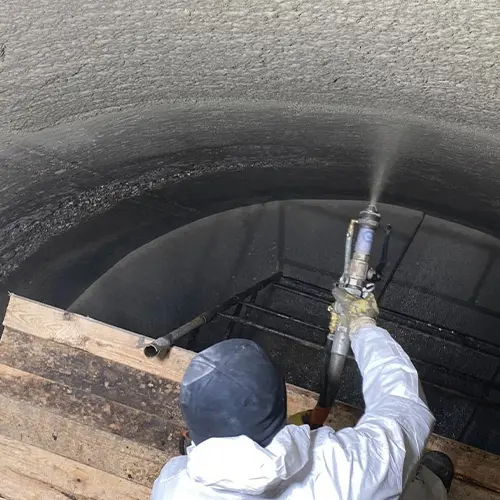

  • Can be applied by hand coating, wet spraying and centrifugal processes
  • Is water-resistant after just 2 hours (at 20°)
ergelit-ks1

Application

  • Coating of concrete and masonry shafts, sewers and storage tanks
  • For waste water containing e.g. sulphate, magnesium, ammonia, oil, grease, benzene, petrol, chemically aggressive environment
  • Suitable for the wet spraying process or the KS-ASS coating system
  • Integrated bonding bridge already included in the product (primer)
  • Can be applied in layer thicknesses of up to 3 cm in one trowel pass
  • In good conditions also overhead
  • Not suitable for open structures
  • Reprofiling of break-outs and defects in shafts, sewers and storage tanks, as well as surface leveling in masonry shafts
  • Production of coving and berms
  • An all-round mortar for coating and repairing wastewater structures with municipal and industrial wastewater
  • Sealing against pressing groundwater
  • Pumpable up to 100 m
  • Can be used in drinking water protection zones
